High Load Carbon Steel Cylinder Earring Bearing

Design Structure and Components

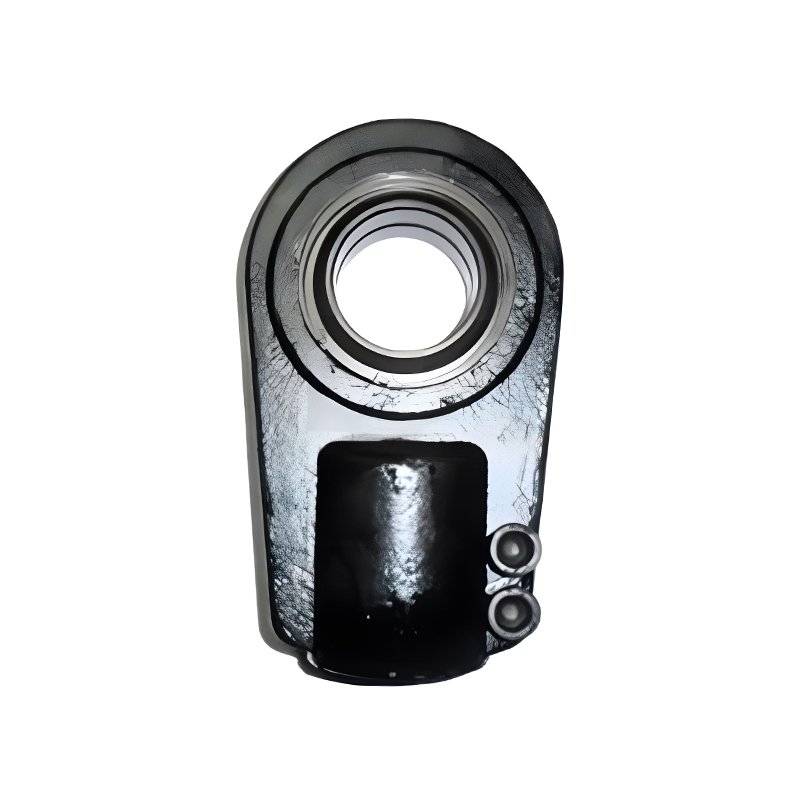

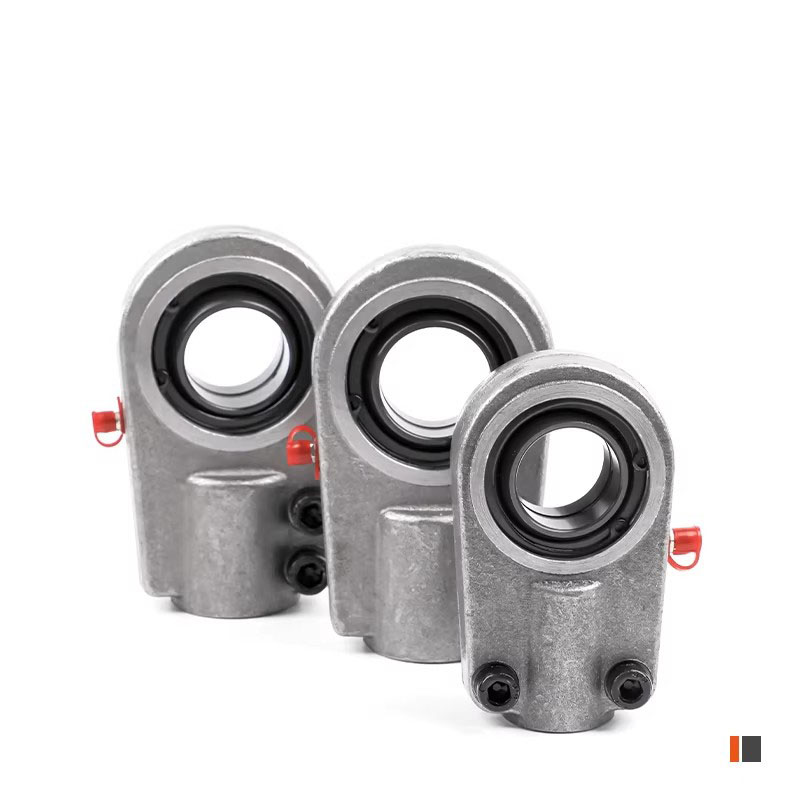

The High Load Carbon Steel Cylinder Earring Bearing features a unique design structure that combines a rod end body with a radial spherical plain bearing. This assembly is secured using a retaining ring, ensuring stability and precision during operation. The rod end body is forged from high-quality carbon steel, a material known for its strength and durability. The forging process ensures that the rod end body can withstand significant stress and load, contributing to the overall reliability of the High Load Carbon Steel Cylinder Earring Bearing.
The rod end body is available in two material options based on its diameter. For diameters up to 70mm, the rod end body is forged from carbon steel, while for diameters of 80mm and above, cast iron is used. This material selection is based on extensive research and testing to ensure good performance and longevity of the High Load Carbon Steel Cylinder Earring Bearing under varying load conditions.

Locking and Lubrication Mechanisms

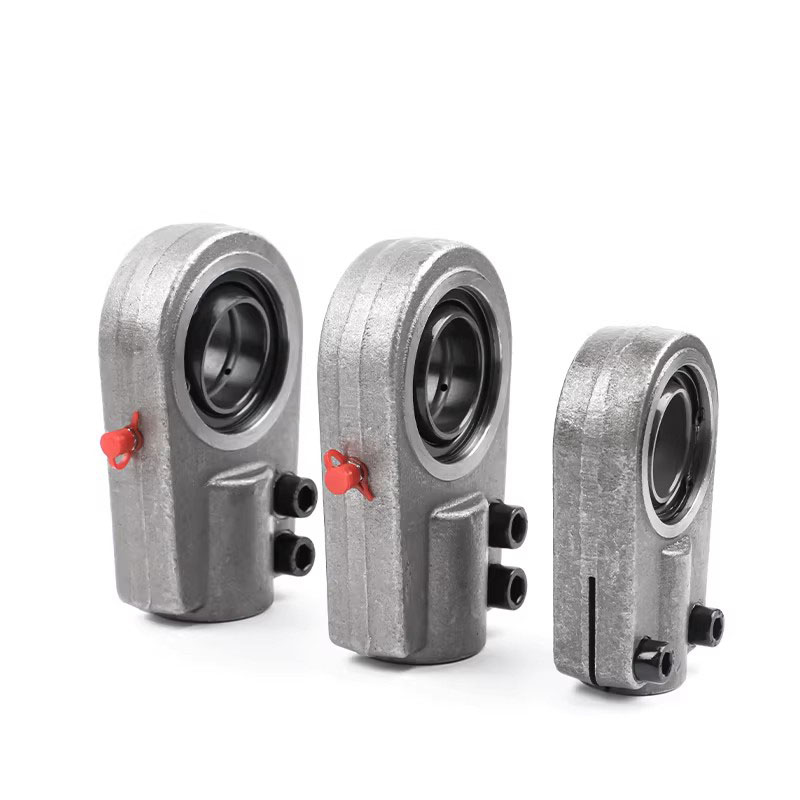

One of the key features of the High Load Carbon Steel Cylinder Earring Bearing is the axial slot locking device located in the rod end handle's internal thread section. This locking mechanism allows for secure attachment and adjustment, ensuring that the bearing remains stable and reliable even under heavy loads. The locking device can be tightened using a screw, providing a secure and precise fit.
In addition to its locking mechanism, the High Load Carbon Steel Cylinder Earring Bearing also incorporates a lubrication system. The rod end handle is equipped with an oil cup, which facilitates regular lubrication. This feature is crucial for maintaining the performance and longevity of the bearing, as it reduces friction and wear between the sliding contact surfaces. The sliding friction pair of the High Load Carbon Steel Cylinder Earring Bearing is steel-on-steel, a combination known for its durability and resistance to wear.

Load-Bearing Capacity and Applications
The High Load Carbon Steel Cylinder Earring Bearing is designed to handle significant loads, making it suitable for a wide range of heavy-duty applications. Its robust construction and advanced design ensure that it can withstand the demanding conditions typically encountered in hydraulic and oil cylinders. The bearing's ability to support heavy loads without compromising on performance makes it a priority choice in industries such as construction, mining, and heavy machinery manufacturing.
In hydraulic cylinders, the High Load Carbon Steel Cylinder Earring Bearing plays a crucial role in ensuring smooth and efficient operation. It helps to distribute the load evenly, reducing the risk of mechanical failure and extending the service life of the cylinder. Similarly, in oil cylinders, the bearing's high load-bearing capacity and durability contribute to the overall reliability and efficiency of the system.

The High Load Carbon Steel Cylinder Earring Bearing is a high-performance mechanical component designed to meet the needs of heavy-duty applications. Its unique design structure, combining a rod end body with a radial spherical plain bearing, ensures stability and precision. The use of high-quality carbon steel and the inclusion of locking and lubrication mechanisms further enhance the bearing's reliability and longevity.
